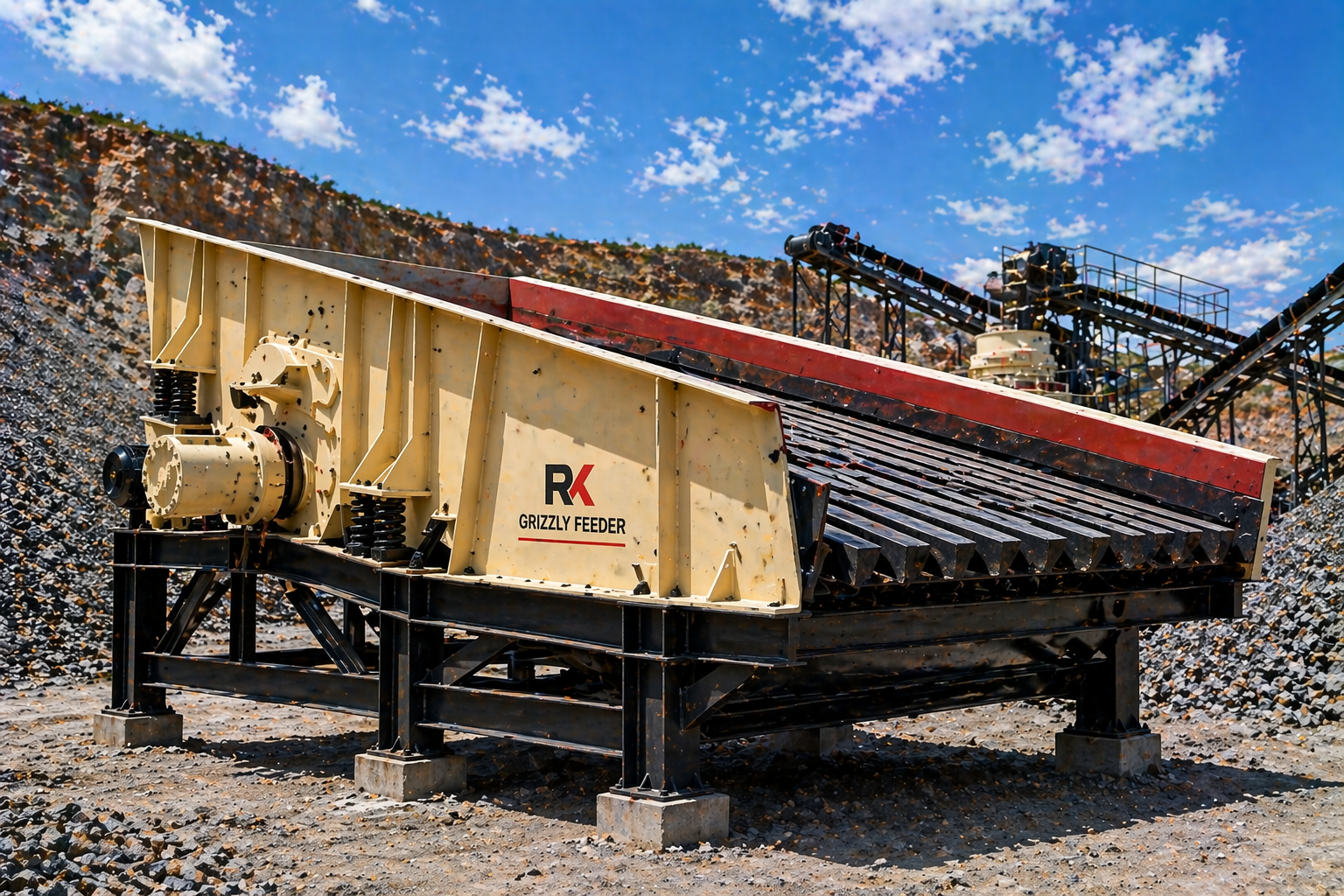

Grizzly Feeder
RK Crusher Grizzly Feeders are specially designed for continuous feeding of large rocks and raw material into jaw crushers and crushing plants.
The feeder removes undersize material before crushing and allows only required feed material to pass forward. This improves crusher efficiency and reduces wear on crushing equipment.
Built with rugged frame construction, powerful vibration drive and heavy-duty grizzly bars, these feeders are ideal for mining, quarry, stone crushing and aggregate industries.
Key Features & Benefits
Heavy duty rugged construction
Higher crushing efficiency
Uniform material flow system
Lower operating cost
Reduces crusher wear
Stable performance in continuous duty
Easy maintenance system
Best for mining & quarry plants
Technical Specification
| Model | Feeder Dimension (mm) | Drive | Power in H.P. | Capacity TPH | Max Feed Size |
|---|---|---|---|---|---|
| RVF2100 | 2100 x 900 | Unbalanced Vibro Motor | 5 H.P x2 | 200 TPH | 900 mm |
| RVF3600 | 3600 x 1200 | Unbalanced Vibro Motor | 7.5 H.P x2 | 300 TPH | 1200 mm |
| RVF4200 | 4200 x 1200 | Unbalanced Vibro Motor | 10 H.P x2 | 500 TPH | 1200 mm |
| RVF4800 | 4800 x 1500 | Unbalanced Vibro Motor | 15 H.P x2 | 1000 TPH | 1500 mm |
Need Grizzly Feeder for Your Plant?
Contact RK Crusher today for pricing, models and custom installation support.
